Key Features
One integrated system for solar, storage and EV charging
5-in-1 Design
Solar inverter, EV DC charger, PCS, battery, EMS
Modular Capacity
BAT 6.0 and BAT 9.0, same size, stackable
UL 9540 Certified
North American safety and performance standards
mySigen App
AI-optimized charge and discharge scheduling
Product Highlights

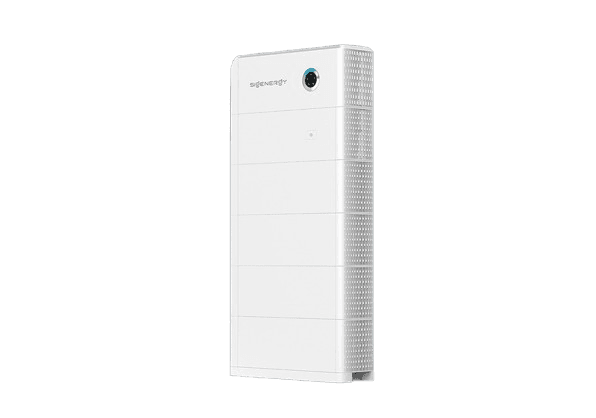

Fully Integrated 5-in-1 System
SigenStor combines a solar inverter, EV DC charger, battery power conversion system, battery pack, and energy management system in one enclosure. Fewer parts and a single integrated design reduce installation time on site.
Same Footprint, Flexible Capacity
BAT 6.0 US and BAT 9.0 US modules share the same physical size, so capacity can be configured flexibly across stages of a project. Modules connect in parallel for straightforward expansion as energy needs grow.
Sigenergy LoadHub for Backup
The optional Sigenergy LoadHub supports 5 double-pole controllable loads with 0 ms load-side switching to backup, plus generator and heat pump support, and both whole-home and partial-home backup configurations.
Cold-Climate Siting for Ontario
The operating range is -4 F to 131 F (-20 C to 55 C). In Ontario winters, install in a garage or conditioned space rather than an exposed exterior wall so the unit stays within its operating range year-round.
Natural Convection Cooling
SigenStor cools by natural convection with no fan assemblies, removing a common maintenance point and keeping operation quiet.
AI-Optimized with mySigen
The mySigen app provides AI-optimized charge and discharge scheduling, remote monitoring, and control, so the system adapts to household usage and time-of-use rate patterns.
Technical Specifications
Specifications are supplied by the manufacturer and are subject to change without notice. Final equipment is confirmed at contract and post inspection design.
Benefits & Features
Why choose Sigenergy SigenStor
5-in-1 design: inverter, EV DC charger, PCS, battery, EMS
Modular BAT 6.0 US and BAT 9.0 US, same physical size
Stackable modules with parallel connection for expansion
Lithium iron phosphate (LiFePO4) chemistry
97 percent depth of discharge
Type 4X enclosure, indoor or outdoor
Natural convection cooling, no fans
Floor-standing or wall-mounted installation
UL 9540 and UL 9540A certified
10-year warranty (5 years without network connection)
AI-optimized scheduling via the mySigen app
Remote monitoring and control
Optional LoadHub for whole-home or partial-home backup
0 ms load-side switching to backup with LoadHub
Generator and heat pump support with LoadHub
Certified installation by Solar X
Frequently Asked Questions
What makes the SigenStor a 5-in-1 system?
It combines a solar inverter, EV DC charger, battery power conversion system, LiFePO4 battery, and energy management system in one enclosure, which cuts the number of separate components and shortens installation.
What is the difference between the BAT 6.0 and BAT 9.0 modules?
The BAT 6.0 US stores 6.02 kWh with 3000 W continuous power, and the BAT 9.0 US stores 9.04 kWh with 4600 W. Both share the same physical size, so capacity can be configured flexibly across a project.
Is Solar X certified to install it?
Yes. Solar X is a certified Sigenergy installer, which keeps the 10-year battery warranty valid on every installation.
Where should it go in a cold climate?
The operating range is -4 F to 131 F. In Ontario winters, Solar X sites the unit in a garage or conditioned space rather than an exposed exterior wall so it stays within range year-round.
Can it charge an electric vehicle?
Yes. The SigenStor includes an integrated EV DC charger and AI-optimized charge and discharge scheduling through the mySigen app.
